Product

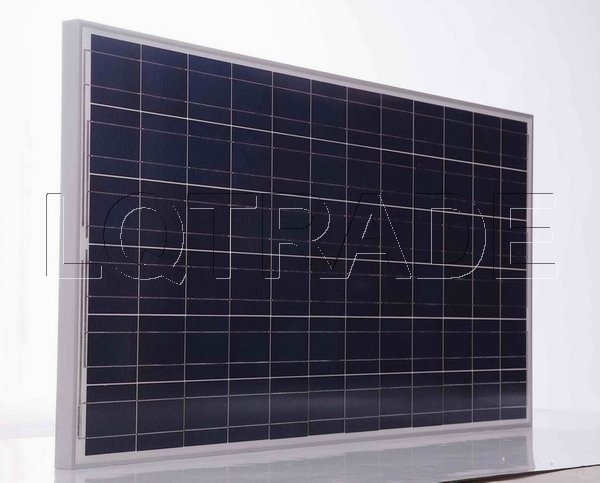

Polycrystalline silicon solar module

POLY SOLAR MODULE  210W ~ 240 W(156MM*156MM solar cells)
Specifications
Model Maximum power at STC(pm)  Open cirxuit voltage(Voc)  Optimum operating voltage(Vmp)  Short circuit current(lsc) Optimum operating current(lmp)
LQ210-60P 210W 35.50V 29.10V 7.98A 7.22A
LQ215-60P 215W 35.90V 29.30V 8.04A 7.34A
LQ220-60P 220W 36.20V 29.60V 8.17A 7.43A
LQ225-60P 225W 36.50V 29.80V 8.25A 7.55A
LQ230-60P 230W 36.90V 30.20V 8.31A 7.62A
LQ235-60P 235W 37.20V 30.60V 8.55A 7.68A
LQ240-60P 240W 37.20V 30.00V 8.65A 8.00A
Parameter
Cell   Polycrystalline silicon solar cells156MM*156MM
No.of cells and connections    60(6*10)
Dimension of module(mm)   1640*990*40
Weight£¨kg£©   15.5
Operating temperature(¡ãC)   -40 to +85
Maximum system voltage   1000 V DC
Temperature and coefficients
NOCT   45¡ãC¡À2¡ãC
Current temperature coefficient   £¥0.06¡À0.01/k
Voltage temperature coefficient   -(155¡À10) mv/k
Limited Warranty
5 -year products workmanship warranty .
90% output power within 10 years after delivery.
80% output power within 25 years after delivery
FOB QUOTATION
USD 2.10/Watt ~ USD 2.30/Watt FOB QINGDAO/TIANJIN
MOQ: 1 KW.
Package: Carton, pallet.
Certification: CE, ISO, TUV, IEC.
Delivery time: Within 10 ~ 25 days.
