Product

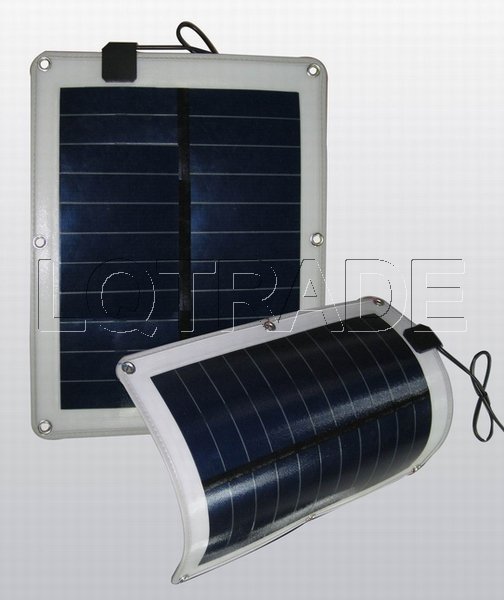

10W Yacht Flexible Solar Panel

Flexible Solar Panel---LQF-10

Product Description:

1. Amorphous silicon thin film solar with triple-junction deposited on the stainless steel substrate.

2. Polymer laminated, Virtually Unbreakable (No Glass).

3. A blocking diode is included to prevent battery discharge from lowing into the module.

4. Damp-proof and durable.

5. light weight ,anti-impact,easy to use and carry.

6. Environment Temperature for using:-40¡æ - +85¡æ.

Specification:

Item No.

Electric Characteristic

Dimensions
L*W*D(mm)

Weight(kg)

Voc(V)

Isc(A)

Vmp(V)

Imp(A)

Pmp(W)

LQP-1.5

6

0.4

4.5

0.33

1.5

208*162*2

0.12

LQP-3.0

12

0.4

9

0.33

3

284*208*2

0.17

LQF-5

23.8

0.4

16.5

0.33

5

542*248*15

0.6

LQF-10

23.8

0.74

16.5

0.6

10

538*426*15

0.82

Measurements made under the standard test conditions (STC):

Irradiance: 1000W¡¤m-2
Spectrum: AM1.5
Module temperature: 25 ¡æ

Notice:

The flexible solar modules can not be bended excessively and randomly.

During the transportation, installation, application and maintenance,

it is forbidden to step and put heavy pressure and scratch on the surface of the module with blunt instrument.

Guarantee and warranty:
1. Within 90 days from the date of purchasing, due to the reason of delect in raw material or leak in workmanship,

cutomers can return the products for free repairing; in case a serious problem
has occured, the costomers can request the replacing of module.
2. LQTRADE assure the life time of LQ series at least 3 years, the maximum output power is no lower than 90%.
