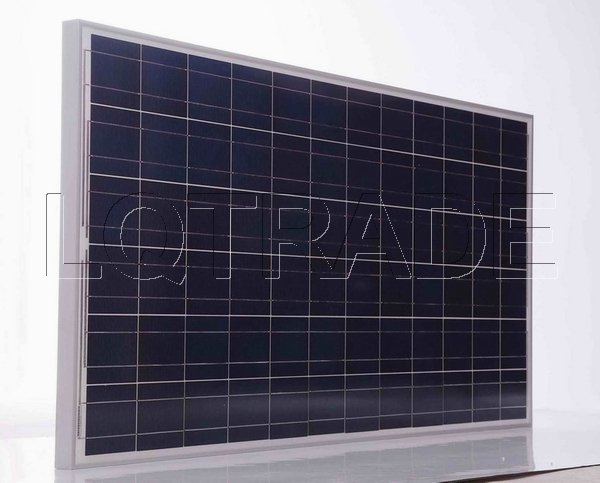

POLY SOLAR MODULE  220W ~ 300 W(156MM*156MM solar cells)
Specifications
Model	Maximum power at STC(pm)	Open cirxuit voltage(Voc)	Optimum operating voltage(Vmp)	Short circuit current(lsc)	Optimum operating current(lmp)
LQ220-72P	220Wp	42.20V	34.00V	7.48A	6.47A
LQ230-72P	230Wp	42.50V	34.10V	7.53A	6.74A
LQ235-72P	235Wp	42.60V	34.30V	7.65A	6.85A
LQ240-72P	240Wp	42.80V	34.50V	7.73A	6.96A
LQ245-72P	245Wp	43.00V	34.60V	7.79A	7.08A
LQ250-72P	250Wp	43.00V	34.80V	7.99A	7.18A
LQ255-72P	255Wp	43.00V	35.00V	8.04A	7.29A
LQ260-72P	260Wp	43.40V	35.20V	8.12A	7.38A
LQ265-72P	265Wp	43.70V	35.60V	8.17A	7.43A
LQ270-72P	270Wp	43.80V	35.90V	8.27A	7.52A
LQ275-72P	275Wp	44.30V	36.10V	8.33A	7.62A
LQ280-72P	280Wp	44.50V	36.40V	8.55A	7.67A
LQ285-72P	285Wp	44.50V	36.50V	8.63A	7.81A
LQ290-72P	290Wp	44.50V	36.50V	8.74A	7.94A
LQ300-72P	300Wp	44.00V	36.00V	8.89A	8.33A
Parameter
Cell		polycrystalline silicon solar cells   156MM*156MM
No. of cells and connection		72(6*12)
Dimension of module(mm)	¡¡	1956*990*50
Weight£¨kg£©		23
Operating temperature(¡ãC)		-40 to +85
Maximum system voltage		1000 V DC
Temperature and coefficients
NOCT		45¡ãC¡À2¡ãC
Current temperature coefficient		£¥0.06¡À0.01/k
Voltage temperature coefficient		-(155¡À10) mv/k
Limited Warranty
5 -year		products workmanship warranty .
90%		output power within 10 years after delivery.
80%		output power within 25 years after delivery
FOB QUOTATION
USD 2.10/Watt ~ USD 2.30/Watt FOB QINGDAO/TIANJIN
MOQ: 1 KW.
Package: Carton, pallet.
Certification: CE, ISO, TUV, IEC.
Delivery time: Within 10 ~ 25 days.
