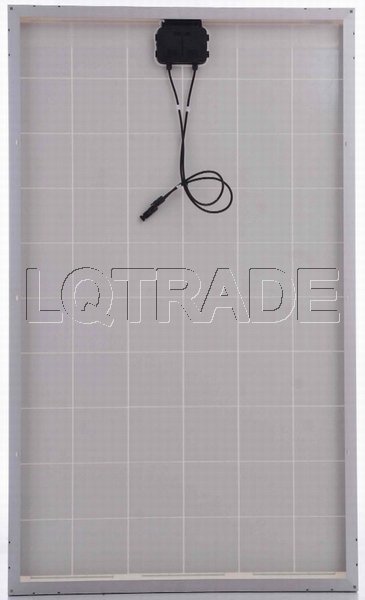

POLY SOLAR MODULE  190W ~ 215 W(156MM*156MM solar cells)
Specifications
Model	Maximum power at STC(pm)	Open cirxuit voltage(Voc)	Optimum operating voltage(Vmp)	Short circuit current(lsc)	Optimum operating current(lmp)
LQ190-54P	190W	32.40V	26.30V	8.00A	7.22A
LQ195-54P	195W	32.90V	26.40V	8.12A	7.41A
LQ200-54P	200W	32.90V	27.00V	8.17A	7.43A
LQ205-54P	205W	33.00V	27.00V	8.33A	7.59A
LQ210-54P	210W	33.20V	27.00V	8.46A	7.78A
LQ215-54P	215W	33.40V	27.50V	8.65A	7.82A
Parameter
Cell		Polycrystalline silicon solar cells156MM*156MM
No.of cells and connections		54(6*9)
Dimension of module(mm)		1480*990*40
Weight£¨kg£©		16.8
Operating temperature(¡ãC)		-40 to +85
Maximum system voltage		1000 V DC
Temperature and coefficients
NOCT		45¡ãC¡À2¡ãC
Current temperature coefficient		£¥0.06¡À0.01/k
Voltage temperature coefficient		-(155¡À10) mv/k
Limited Warranty
5 -year		products workmanship warranty .
90%		output power within 10 years after delivery.
80%		output power within 25 years after delivery
FOB QUOTATION
USD 2.10/Watt ~ USD 2.30/Watt FOB QINGDAO/TIANJIN
MOQ: 1 KW.
Package: Carton, pallet.
Certification: CE, ISO, TUV, IEC.
Delivery time: Within 10 ~ 25 days.
