100W  Household Solar PV System

FS-S008(12V100AH) 100W AC SOLAR POWER with UPS function and electricity charging function

Product Name : FS-S008 (12V100AH) 100W Solar Power System

FS-S008(12V100AH) 100W AC SOLAR POWER SYSTEM

Specifications:

1.Inverter: 500W uninterrupted power supply.

2.Output voltage: 3.5V+5V+8.4V+12V+16V+19V+24V+220V

3.Application: VCD, DVD, TV set, fan, computer, phone and the other little households etc.

4.Checking how much electricity by itself. There are four show lights let you know the power state.

5.Adopt universal socket, it can suit every plug.

6.Convenient: solar input, 12V output, 220V output, they all have industrial socket.

7.Can charge from normal electricity, incase wet weather.

8.Accessories: a set of adapter connector for computer and a set of adapter connector for Mobil phone. A wire for normal electricity. 2 DC adapters.

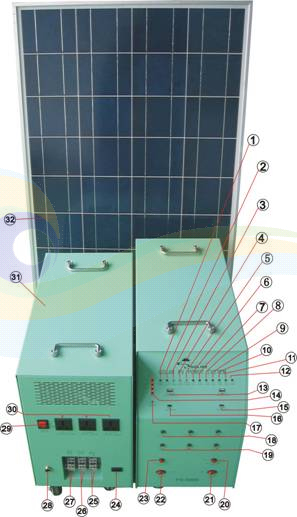

PRODUCT PICTURE

1. Show light for inverter¡¯s working

2. Show light for inverter¡¯s not working

3. Show light for AC charging (red for charging, green for full.)

4. Show light for solar charging (red for charging, green for full.)

5. Show light for battery (green for not empty, red for empty)

6. Show light for 12V load (shine for working, not shine for not working)

7. Show light for 24V load (shine for working, not shine for not working)

8. Show light for 19V load ( shine for working, not shine for not working)

9. Show light for 16V load (shine for working, not shine for not working)

10. Show light for 8.4V load (shine for working, not shine for not working)

11. Show light for 5V load (shine for working, not shine for not working)

12. Show light for 3.3V load (shine for working, not shine for not working)

13. USB interface for 8.4V/5V/3.3V(adjustable)

14. Show lights for battery¡¯s power

15. 8.4V/5V/3.3V select output button

16. 24V/19V/16V select output button

17. Check button for battery¡¯s power

18. 24V/19V/16V output interface

19. 12V output interface

20. 8.4V/5V/3.3V output switch

21. 220V output switch

22. 12V output switch

23. 24V/19V/16V output switch

24. AC input interface

25. AC 220V output terminal

26. DC 12V output terminal

27. Solar input terminal

28. Solar input interface

29. Master switch

30. AC 220V output socket

31. System box

32. Solar panel
