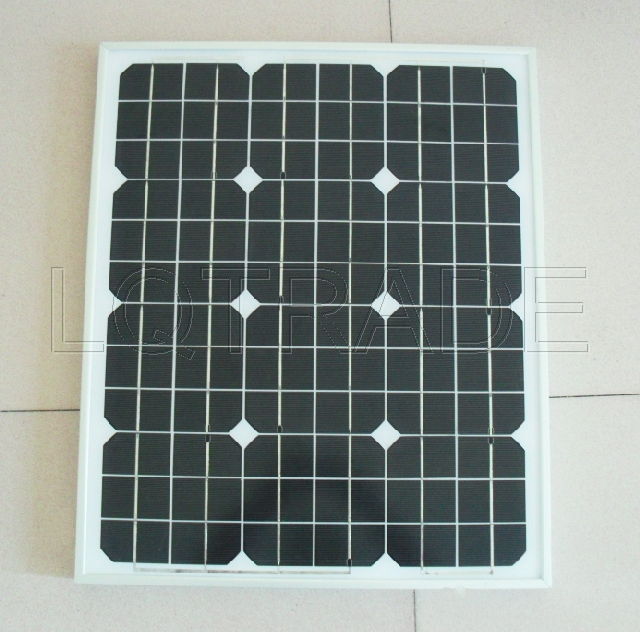

38/40/45W Mono Solar Panel

40W Series Monocrystalline Silicon Photovoltaic Solar Modules

Composition:
1. 36pcs of high efficiency solar cell
2. High transmission rate and low iron temperd glass
3. Anti-aging EVA
4. high frame resistant TPT
5. Laminate and anodized aluminum alloy
Advantages: high efficiency,long life span, easy installation, high wind and hail impact resistance etc.

Module LQ40-36M
Encapsulation Glass/EVA/Cells/EVA/TPT
Size and No. of cells 125*125mm, 4*9PCS
Maximum Power(Pm) 38W 40W 45W
Tolerance(+/-) 5% 5% 5%
Voltage at Max Power(Vmp) 17.2V 17.2V 17.2V
Current at Max Power(Imp) 2.21A 2.32A 2.61A
Open circuit voltage(Voc) 21.6V 21.6V 21.6V
Short circuit current(Isc) 2.43A 2.57A 2.87A
Max. system open voltage 715V 715V 715V
Diodes None
Dimension 650*538*40mm
Weight 4.5 KG
Operate Temp. scope -40 ~ + 85 celsius degree
Relative humidity 0 to 100%
Resistances 227g stell ball fall down from 1m height and 60m/s wind
Warranty Pm not less than 90% in 10 years, and 80% in 20 years
Test Conditions: @STC 1000W/m2. AM1.5.25 Celsius degree
Certification: CE
Applications:
Grid tied system off grid power system
Private residences Water pumping
Telecommunication Rural electrification
Cathodic protection Road lights
Traffice signaling Camping/ RV/ Caravans
Temperation coefficients:
Noct: 48¡æ¡À2¡æ
Current temperature coefficient 0.06¡À0.01%/K
Voltage temperature coefficient -(78¡À10)MV/K
Power temperature coefficient -(0.5¡À0.05)%/K
Applications:
Grid tied/off grid power system Electric fencers,land-based navigation aids
Private residences Water pumping
Electronic product. Rural electrification
Cathodic protection Telecommunication-Road lights
Remote telemetry  instrumentation systems, security sensor
Traffice signaling Camping/ RV/ Caravans
