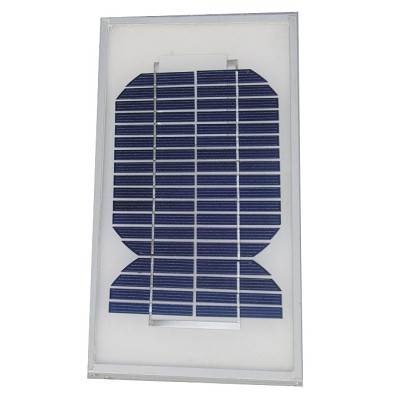

3W Mono Solar Panel

2.8W/3W/3.2W Mono Solar Panel

Module LQ03-36M
Encapsulation Glass/EVA/Cells/EVA/TPT
Size and No. of cells 125*125mm, 2*18PCS
Maximum Power(Pm) 2.8W 3W 3.2W
Tolerance(+/-) 5% 5% 5%
Voltage at Max Power(Vmp) 17.2V 17.2V 17.2V
Current at Max Power(Imp) 0.16A 0.17A 0.18A
Open circuit voltage(Voc) 21.6V 21.6V 21.6V
Short circuit current(Isc) 0.17A 0.18A 0.19A
Max. system open voltage 715V 715V 715V
Diodes None
Dimension 235*150*25mm
Weight 0.6 KG
Operate Temp. scope -40 ~ + 85 celsius degree
Relative humidity 0 to 100%
Resistances 227g stell ball fall down from 1m height and 60m/s wind
Warranty Pm not less than 90% in 10 years, and 80% in 20 years
Test Conditions: @STC 1000W/m2. AM1.5.25 Celsius degree
Certification: CE
Applications:
Grid tied system off grid power system
Private residences Water pumping
Telecommunication Rural electrification
Cathodic protection Road lights
