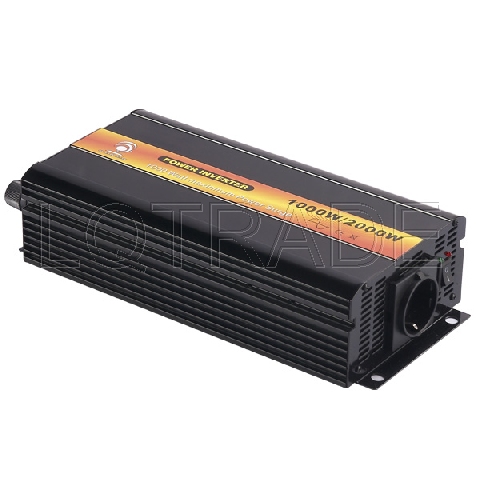

1000W Solar Power Inverter

1000W Series Pure Sine Wave DC to AC Power Inverter
Model No.  IN1000-112A1  IN1000-124A1  IN1000-148A1  IN1000-112B2  IN1000-124B2  IN1000-148B2
Output  AC voltage  110V¡À10%  220V¡À10%
Rated power  1000W  1000W
Peak power  2000W  2000W
Waveform (THD)  Pure sine wave (<3%)  Pure sine wave (<3%)
Frequency  60Hz ¡À0.3%  50Hz ¡À0.3%
Input  NO load current draw  <1A  <1A  <1A  <1A  <1A  <1A
DC voltage  12V  24V  48V  12V  24V  48V
Voltage range  10.8~15VDC  21~30VDC  41~56VDC  10.8~15VDC  21~30VDC  41~56VDC
Efficiency  > 90%  > 90%
DC connector  Cables With Clips or Car Adaptor  Cables With Clips or Car Adaptor
Protection  Low voltage alarm  10.2¡«10.8V  20.4V  40.8V  10.2¡«10.8V  20.4V  40.8V
Low voltage shut down  DC 9.5V  DC 19.5V  DC 38.5V  DC 9.5V  DC 19.5V  DC 38.5V
Over load  Shut Off Output  Shut Off Output
Over voltage shut down  DC 15.5V  DC 30.5V  DC 61.2V  DC 15.5V  DC 30.5V  DC 61.2V
Over thermal  Shut Off Output Automatically Shut Off Output Automatically
Fuses  Short Circuit  Short Circuit
Environment  Working temperature  -10~+50 celsius degree -10~+50 celsius degree
Working humidity  10%~90%RH  10%~90%RH
Storage temperature  -20¡ãc ~ +50¡ãc  -20¡ãc ~ +50¡ãc
Package  Machine Size(mm)  323*139*72
Packing Size(mm)  368*180*120
Net Weight  2.7kg/unit
Gross Weight  3.5kg/unit
Packing Mode  Carton
Other  Start  Soft Start
Cooling Ways  Cooling Fan
Features:
Pure sine wave output (THD<3%)
Power ON-OFF switch
Input voltage range:-15% ~ +25%
Output voltage regulation:¡À10%
Thermo control cooling fan
Two-color indicators display power and fault status
Protections:short circuit, overload, over temperature, low
battery voltage, over battery voltage, lack-voltage alarm.
Topology: Microprocessor
Approvals: RoHS / CE / EMC / LVD
1 year warranty
