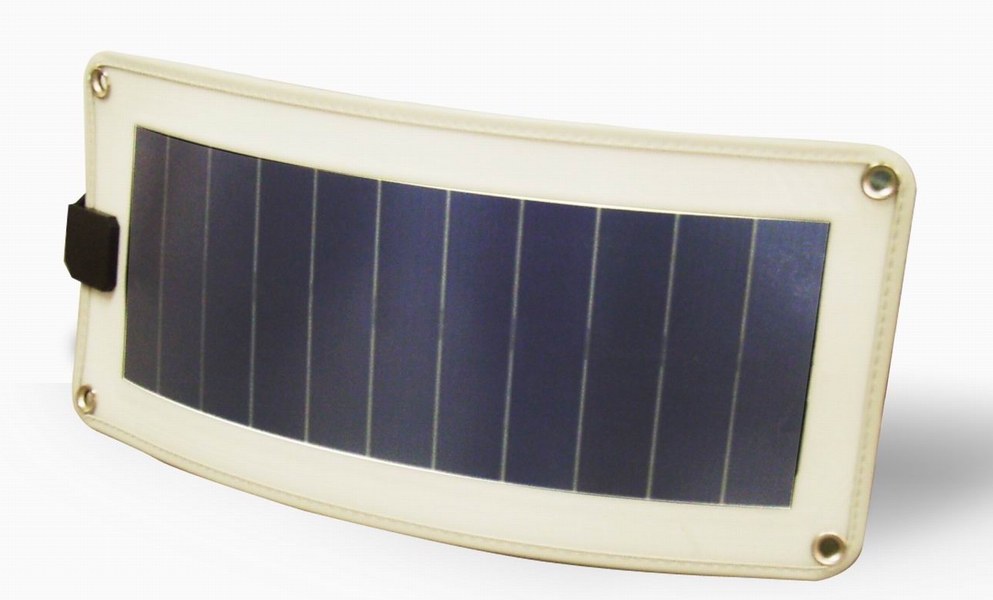

5W Yacht Flexible Amorphous Silicon Solar Panel

Yacht flexible amorphous silicon solar module can convert sunlight directly into DC voltage, charging for 12V storage battery.

Under full sunshine, after storage battery is fully charged by solar panel, it can meet the electric demands of lighting, radio, sound,

water pump, motors of the yacht, the use of multiple pieces of solar modules can power the refrigerator.

The yacht flexible solar system can increase the ¡°quiet ¡± period of yacht to maximum, it is one of the best independent power supply for vacation.

Flexible Solar Panel-1.0W,1.5W, 3W, 5W, 10W , 32W
Product Description:
1. Amorphous silicon thin film solar with triple-junction deposited on the stainless steel
substrate. Polymer laminated, virtually unbreakable(No Glass).
2. Bypass diodes are connected across each cell, allowing the modules to produce
power even when partially shaded.
3. In LQF-32 a blocking diode is included within each potted junction box to prevent
battery discharge into the module.
4. Can be bented suitably
5. Damp-proof and durable
6. Light weight, easy to install and transport
7. Environment Temperature for using: -40¡æ-+85¡æ
Specification:
Item No.	Electric Characteristic					Dimensions L*W*D(mm)	Weight(kg)
	Voc(V)	Isc(A)	Vmp(V)	Imp(A)	Pm(W)
LQP-1.0	4	0.4	3	0.33	1	208*110*1.23	0.06
LQP-1.5	6	0.4	4.5	0.33	1.5	208*162*2	0.12
LQP-3.0	12	0.4	9	0.33	3	284*208*2	0.17
LQF-5	23.8	0.4	16.5	0.33	5	542*248*15	0.6
LQF-10	23.8	0.74	16.5	0.6	10	538*426*15	0.82
LQF-32	23.8	2.4	16.5	1.94	32	1416*426*15	2.14

Guarantee and warranty:
1. Within 90 days from the date of purchasing, due to the reason of delect in raw material or leak in workmanship,

cutomers can return the products for free repairing; in case a serious problem
has occured, the costomers can request the replacing of module.
2. LQTRADE assure the life time of LQ series at least 3 years, the maximum output power is no lower than 90%.
