Product Name |

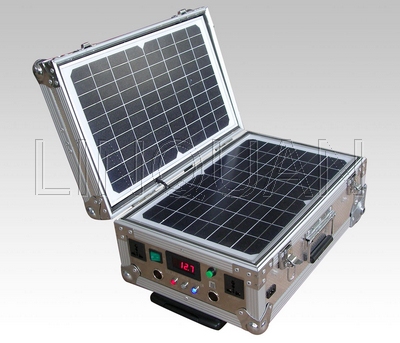

30W portable AC solar power system |
Max output per day |
30Wp |
Model No. |
JNMA-030A |
Application |
Being able to drive notebook computer / TV and other digital devices |
Best choice for user and herdsman in remote areas |
For outpost, Field work, design and manufacture of tourist camps |
System Configuration |
Polycrystalline solar panel 15W |
2 PCS |
DC charger controller 10A |
1 PCS |
Lead acid solar storage battery 12AH |
3 PCS |
Power control box |
1 PCS |
Solar Inverter(DC to AC) 500W |
1 PCS |
Brackets and PV cable |
1 SET |
Technical parameters |
Solar power |
30Wp |
Operating voltage |
18V |
Battery |
12V/45Ah |
System Output |
220V/110V |
DC output control |
Battery voltage falls below 10.8V, ouput suspend (red light on), |
higher than 12.6V (red light off). |
Battery voltage falls below 10.5V, output suspend (switch light OFF), |
Higher than 12.6V start work (switch light ON). |
Working Hours |
Battery fully charged, supporting 2pcs of 5W/12V Led lights working 60hrs |
Status indication |
Green LED light ON |
Power indicator |
Yellow LED light ON |
Charging indicator |
Red LED light ON |
Ouput cut-off |
Solar panel Dimension |
468mm x 288mm x 25mm |
Power box Dimension |
495mm x 315mm x282mm |
Pkg size of solar panel |
528mm x 348mm x 85mm |
Pkg size of power box |
555mm x 375mm x342mm |
Net Weight |
20KG |
Gross Weight |
25KG |
