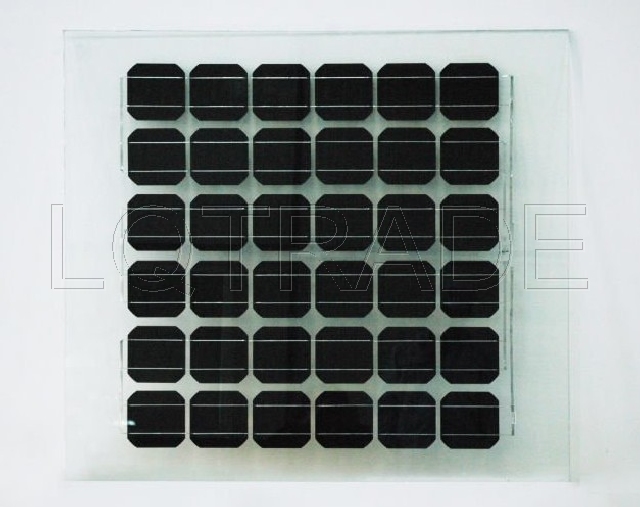

60W Double Glass Solar Panel

BIPV Double Glass Solar Panel

Features:

1. Innovative photovoltaic glass products;

2. Perfect integration of generating equipment and ceilings;

3. Adopting crystalline silicon solar cells, laminated by two sheets of glass with space left between

solar cells to allow sunshine going through;

4. Standardized and low cost glass solar panel, suitable for photovoltaic ceilings and curtain walls;

5. An advanced solar system integrating with high efficiency solar panels, excellent performance.

Electrical Characeteristics:

Type

DG60-24M

DG70-36M

DG75-36M

DG80-36M

Rated maximum power (Wp)

60

70

75

80

Maximum power voltage (Vmp)

12

17

17.35

17.8

Maximum power current (Imp)

5

4.12

4.33

4.5

Open circuit voltage (Voc)

14.4

21.6

21.6

21.8

Short circuit current (Isc)

5.4

4.92

5.03

5.1

Cell efficiency

17.00%

13.25%

14.25%

15.00%

Max system voltage (VDC)

750VDC

750VDC

750VDC

750VDC

Temperature range

-40~85 Celsius degree

Power tolerance

¡À5%

Standard test conditions

STC:AM=1.5,1000W/m2,cells temperature 25¡æ

Mechnical Characteristics

Solar cell

Mono(4*6)

Mono(4*9)

Mono(4*9)

Mono(4*9)

Size of module(mm)

1050*720*8

1300*750*9.23mm





Weight per piece(kg)

14.5

14

14

14

Double Glass

3.2 mm tempered glass

Surface Maximum Load Capacity

60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Junction Box Type

Edge(IP65 rated), 1000 VDC,TUV certified; 2 pcs Schottky By-pass diodes

Connectors

MC Plug Type IV connectors

Cables

4.0 mm2, 900m

Encapsulation

Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA

Temperature coefficients

Nominal Opening Cell Temperature

 45¡À2¡æ

Temperature coefficients of Pm(%)

 -0.52%/K

Temperature coefficients of Im(%)

0.03%/K

Temperature coefficients of Vm(%)

 -0.37%/K
