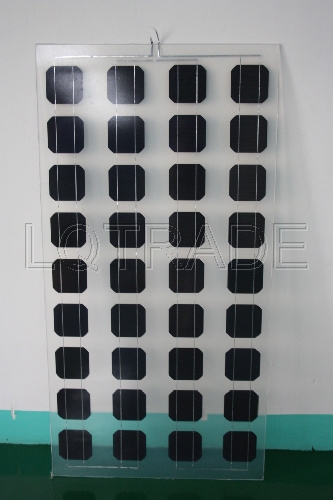

180W Double Glass Solar Panel

BIPV Double Glass Solar Panel

Features:

1. Innovative photovoltaic glass products;

2. Perfect integration of generating equipment and ceilings;

3. Adopting crystalline silicon solar cells, laminated by two sheets of glass with space left between

solar cells to allow sunshine going through;

4. Standardized and low cost glass solar panel, suitable for photovoltaic ceilings and curtain walls;

5. An advanced solar system integrating with high efficiency solar panels, excellent performance.

Electrical Characeteristics:

Type

DG180-72M

Rated maximum power (Wp)

180

Maximum power voltage (Vmp)

36

Maximum power current (Imp)

5

Open circuit voltage (Voc)

43.2

Short circuit current (Isc)

5.4

Cell efficiency

17.00%

Max system voltage (VDC)

1000VDC

Temperature range

-40~85 Celsius degree

Power tolerance

¡À5%

Standard test conditions

STC:AM=1.5,1000W/m2,cells temperature 25¡æ

Mechanical Characteristics

Solar cell

Mono(6*12)

Size of module(mm)

1800*1050*8

Weight per piece(kg)

36.5

Double Glass

3.2 mm tempered glass

Surface Maximum Load Capacity

60m/s(200kg/sq.m)

Allowable Hail Load

steel ball fall down from 1m height

Junction Box Type

Edge(IP65 rated), 1000 VDC,TUV certified; 2 pcs Schottky By-pass diodes

Connectors

MC Plug Type IV connectors

Cables

4.0 mm2, 900m

Encapsulation

Both sides Low iron tempered glass with light transmission above 91%, laminated with fast cure EVA

Temperature coefficients

Nominal Opening Cell Temperature

 45¡À2¡æ

Temperature coefficients of Pm(%)

 -0.52%/K

Temperature coefficients of Im(%)

0.03%/K

Temperature coefficients of Vm(%)

 -0.37%/K
