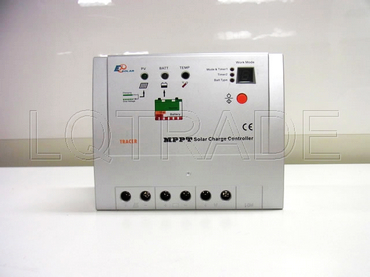

20A MPPT Tracer-2210/2215RN Solar Controller

20A MPPT Tracer-2210/2215RN Solar Controller

Tracer-2210/2215RN

System Voltage 12 / 24VDC

Rated Battery Current 20A

Rated Load Current 20A

Max. PV Input Power 12V System 260W; 24V System 520W



Key features:

MPPT technology

Peak conversion efficiency of 97 %

High Tracking efficiency of  99%

Several seconds tracking speed

Very fast Sweeping of the entire I-V curve

4- Stage charge with PWM output

Excellent thermal design and nature air cooling

Full power output in ambient temperatures up to 45¡æ

Temperature compensation function

Sealed, Gel, Flooded battery type optional

Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST

RJ45 interface with optional remote meter

Standard 2 years warranty

CE certificate
