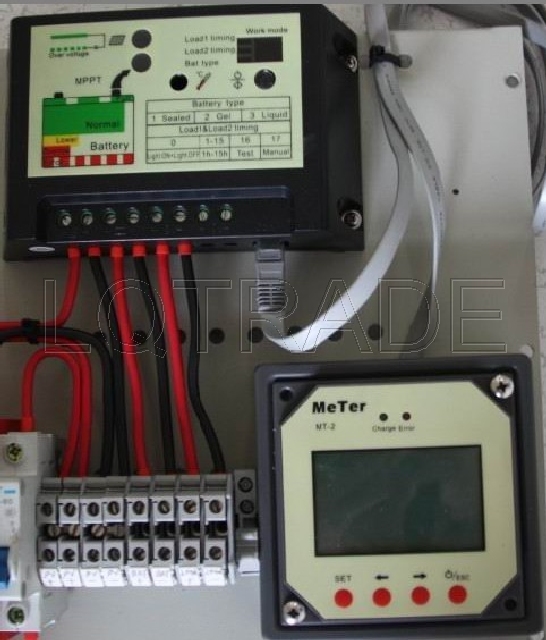

MPPT 10A with LCD Display Remote Meter

MPPT 10A with LCD Display Remote Meter

Specification of MPPT 10A Solar Controller:

Description

Parameter

Norminal system voltage

12VDC or 24VDC

Rated battery current

10A

Battery voltage range

9 ¨C 36V

Max. solar input voltage

TRACER-1206 60VDC

TRACER-1210 100VDC

TRACER-1215 150VDC

Max. PV input power

12V/120W

24V/240W

Self-consumption

ĦÜ16mA

RJ45 connection

8pin

Load surge protect

35A

Specificaiton of LCD Display Remote Meter

Rated voltage: 12V, min voltage(suggest): 8.0V.

Strong backlight on: <23mA,

Low backlight on: <20mA

Backlight and LED indicator off: <17mA

Operation temperature: -40C ~ +60C

LCD operation temperature: -10C ~ +40C

Humidity: 0-100%

Communication cable: RJ45(8PIN)
