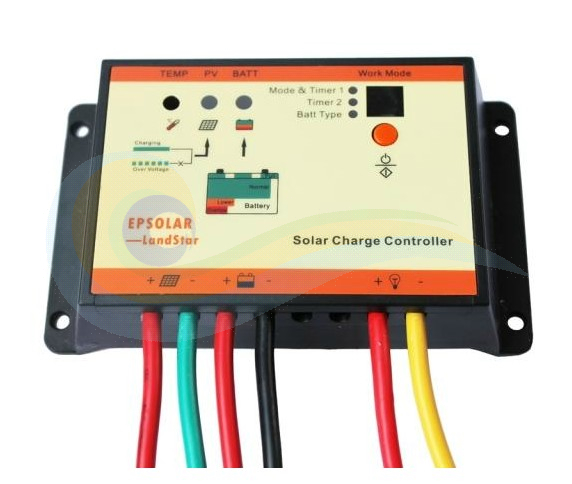

Waterproof dual load Solar Controller

Model: LS1024RPD/LS1524RPD/LS2024RPD
Light and timer control
Waterproof design and dual load output
Ideal for the extreme environments with corrosion, dust, water etc
Current: 10A/15A/20A
Voltage£º12/24V auto work
Features£º
12/24V automatic recognition
High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance.
Use MOSFET as electronic switch, without any mechanical switch
Widely used, automatically recognize day/night.
Digital LED menu, only one key solve all setting simply
Intelligent timer function with 1-15 hours option
Dual load output, enhance the flexibility of the system.
Waterproof design, suitable for the extreme environment with corrosion, dust, water etc.
Gel, Sealed and Flooded battery type option.
Adopt temperature compensation, correct the charging and discharging parameters automatically and improve the battery lifetime.
Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
Reverse protection: any combination of solar module and battery.

Technical specifications
Electrical Parameters
Description	Parameter
Nominal System Voltage	12 / 24VDC Auto work
Battery Voltage Range	6-36V
Rated Battery Current	LS1024RPD  10A
	LS1524RPD  15A
	LS2024RPD  20A
Charge Circuit Voltage Drop	¡Ü0.26V
Discharge Circuit Voltage Drop	¡Ü0.15V
Self-consumption	¡Ü6mA
Temperature Compensation Coefficient
Description	Parameter
Temperature Compensation Coefficient(TEMPCO)	-30mV/celsius/12V(25 celsius ref)
Compensation of equalize, boost, float and boost reconnect voltage
Battery Voltage Parameters (temperature at 25 celsius)
Charging  Parameters
Battery charging setting	Gel
Over Voltage Disconnect Voltage	16V; x2/24V
Charging Limit Voltage	15.5V;x2/24V
Equalize Charging Voltage	-----
Boost Charging Voltage	14.2V;x2/24V
Float Charging Voltage	13.8V;x2/24V
Boost Reconnect Charging Voltage	13.2V;x2/24V
Environmental parameters
Environmental  parameters	Parameter
Working temperature	-35 to +55 celsius
Storage temperature	-35to +80 celsius
Humidity	10%-90% NC
Enclosure	IP66
LS1024RPD Mechanical parameters
Overall dimension	145(5.71)x69(2.72)x31.6(1.24) mm/inches
Mounting dimension	135(5.31) x 49.5(1.95) mm/inches
Mounting hole size	¦µ4.5
Terminal	6mm2
Net weight	0.3kg
LS1524RPD & LS2024RPD Mechanical Parameters
Mechanical Parameter	¡¡
Overall dimension	144.6(5.69)x85(3.35)x34.3(1.35) mm/inches
Mounting dimension	135(5.31)x65(2.56) mm/inches
Mounting hole size	¦µ4.5
Terminal	10mm2
Net weight	0.4kg
