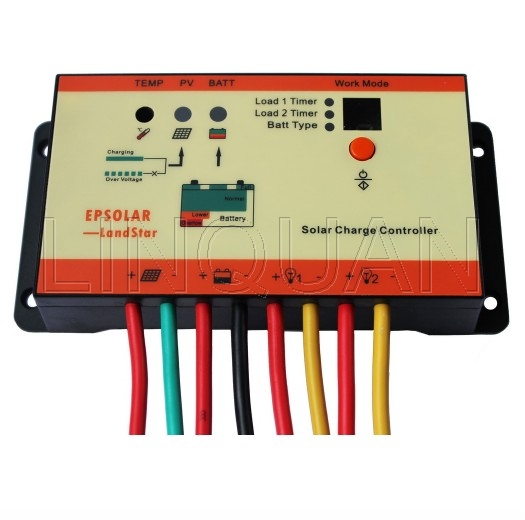

20A Two Load LandStar Waterproof LS2024RPD PV Solar Light Controller

Solar regulator for street light
Dual load function
Waterproof IP67
Battery type selection

Solar charge controller
1. Intelligent System Optimum Controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size
4.Use MOSFET as electronic switch, without any mechanical switchDigital LED menu, only one key solve all setting simple
5.Widely used, automatically recognize day/night
6.Intelligent timer function with 1-15 hours option
7.Dual load output, enhance the flexibility of the system
8.Waterproof design, suitable for the extreme environment with corrosion, dust, water etc.
9.Gel,Sealed and Flooded battery type option
10.Load status display
11.Big terminals and big distance between terminals
12.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit
13.Reverse polarity protection : Any combination of solar module and battery
14.Load work mode: Light ON+timer, Dusk to Dawn, Test, ON/OFF

Model

LS2024RPD

Rated  Current

20A

System Voltage

12/24V auto work

Over Load Protection

1.25 times of rated current for 60 seconds, or 1.5 times for 5 seconds

Short Circuit Protection

3.5 times of rated current

Self- consumption

Max.6mA

Working Temperature

-35¡ãC to +55¡ãC industrial

Equalize Charging Voltage

14.6V;x2/24V

Boost Charging Voltage

14.4V;x2/24V

Float Charging Voltage

13.8V;x2/24V

Boost Reconnect Charging Voltage

13.2V;x2/24V

Temperature Compensation

-30mV/¡ãC/12V

Under Voltage Warning Voltage

12.0V;x2/24V

Low Voltage Disconnect Voltage

11.1V;x2/24V

Low Voltage Reconnect Voltage

12.6V;x2/24V

Terminals

20mm2

Enclosure

IP67
