Product

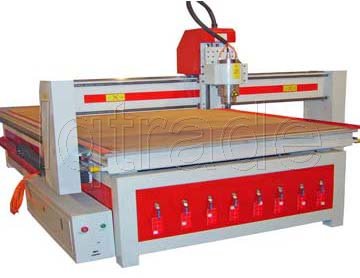

CNC Router

Model

LQ-K1218

X-Y-Z axis working area

1,200 x 1,800 x 120mm

Machine size

1,850 x 2,550mm

Resolutions

0.025mm

X-Y movement

rack and pinion, gear drive/Taiwan

Z movement

ball screw drive/Germany

Guide

Linear ¡Ó20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

3kw(water cooling)

Spindle speed

24,000rpm

Inverter power

3.7kw

Drive motors

stepper

Working voltage

AC220V/50-60Hz

Command code

G code

Computer interface

USB 2.2

Collet

ER20-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0401 (Digital Signal Processor)

Packing dimensions

1860 x 2560 x 2000 mm, 900 Kgs

Equipment available

a.Vacuum hold down

b.Auto cut adjusting device

c.Oil lubrication system

d.Clamps and vacuum fitting
