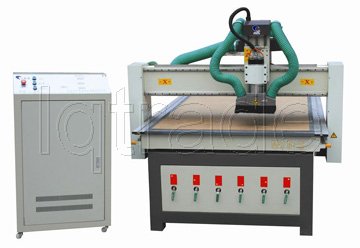

Product


CNC Router

Model

LQ-K3030A

X-Y-Z axis working area

300 x 300 x 50mm

Machine size

360 x 360mm

Resolutions

0.0025mm

Repositioning resolution

0.02mm

X-Y-Z movement

Ball screw drive/Germany

Max. speed

7,000mm/min

Max. cutting speed

5,000mm/min

Spindle

1.5kw(watercooling)

Spindle speed

24,000rpm

Inverter power

3.7kw

Drive motors

stepper

Working voltage

AC220V/50-60Hz

Command code

HPGL£¬G code

Computer interface

USB 2.2

Collet

ER25-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Equipment available

Auto cut adjusting device
