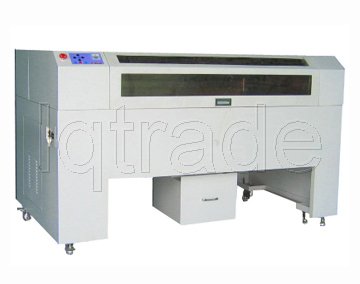

Model	LQ-C120/LQ-C120+	LQ-C150/LQ-C150+	LQ-C150X
Laser tube	Water cooling Co2 sealed glass
Control system	32 Bit DSP
Drive type	Stepper motor
Laser Power	80/100W	80/100W	100W
Working Size (mm)	600 x 1200	900 x 1500	1300 x 1500
Max speed	1000 mm/s
Image form	Plt, Dxf, Bmp, Ai, Dst
Resolution	2500 DPI
Repeatability	0.01
Interface	PCI
Power	110~240V/ 50~60Hz
Warranty	12 Months
Machine dimensions (mm)	1800*1100*1130	2100*1400*1130	2100*1800*1130
Package dimensions (mm)	1950*1200*1330	2250*1600*1330	2250*2000*1330
G. W. (Kg)	360	430	480
