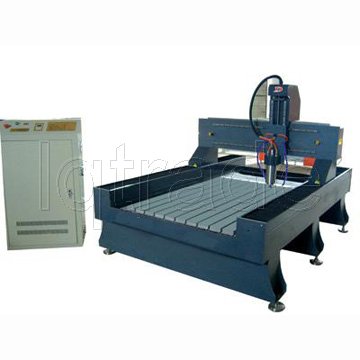

Model	LQ-K1224
X-Y-Z axis working area	1,220 x 2,440 x 120mm
Machine size	1,850 x 3,150mm
Resolutions	0.025mm
X-Y movement	rack and pinion, gear drive/Taiwan
Z movement	ball screw drive/Germany
Guide	Linear ¡Ó20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle power	3kw(water cooling)
Spindle speed	24,000rpm
Inverter power	3.7kw
Drive motors	stepper
Working voltage	AC220V/50-60Hz
Command code	G code
Computer interface	USB 2.2
Collet	ER20-12.7mm,6mm,3.175mm
Software	Type3 Software/France
Controls	DSP0501 (Digital Signal Processor)
Packing dimensions	1950 x 3300 x 2000 mm, 1050 Kgs
Equipment available	a.Vacuum hold down b.Auto cut adjusting device c.Oil lubrication system d.Clamps and vacuum fitting
