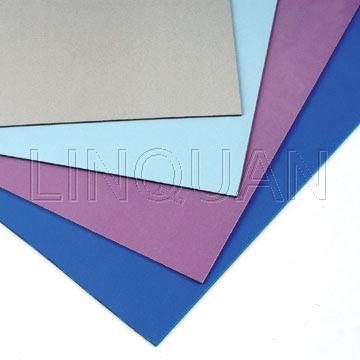

Aluminum composite signage panel
Aluminum Composite Material For Signage, advertising boards.
Both sides PE painting Aluminum Composite Panel
Brief Introduction:
A brand new solution for digital printing.
A specially developed coating is applied to both sides of the panel providing vastly improved ink adhesion, far better than standard PE coating.
The complete flatness of Digital Signbord makes the surface and your design look absolutely perfect.
Our Digital Sign ACM can be machined after printing, with no cracks or damage to the surface.
Features:
1. Using special high-level polyester paint, it is suitable for screen printing,UV digital printing and other grphic print.
2. Excellent coating surface enables easy to print,great ink absorbability and no surface pre-treating is required before printing.
3. Displaying good abrasion-resistance and weather-resistance,it can withstand harsh environment,
With colorful and glossy retention for distinctive advertising designs.
With high-quality coating,easy to maintain and clean.
4. Extreme flat and flawless,lightweight,high strength,good rigidity,smooth surface,easy processing,
5. It can be sculptured,folded,rolled without deformation,wrinkling and delamination.
6. Using special protective film,easy peeling an easy to use.
7. Environmental protective is guaranteed by using 100% recyclable materials.
8. Excellent printable paint face, fit various designs.
9. Lightweight, high strength, extreme rigidity and flatness
10. Acid-resistance, alkali-resistance
11. Outstanding color and gloss retention in a virtually limitless range of hues
12. Easily maintenance, simply cleaning
Application:
1. Exhibition Advertisement
2. UV Digital Printing-Painting
3. Lamp Columns
4. Vertical Letters
5. Curtain wall
6. Interior Decoration
7. Gas Station
8. Show Room
9. Outdoor Ads
10. Screen Printing Posters
11. Sign board, Platform, shopping mall, advertisement board
Digitial Printing & Signage Aluminum Composite Material(Panel) Specification:
|
Overall thickness of ACP |
2mm, 3mm, 4mm |
|
Thickness of aluminum layer |
0.15mm, 0.20mm, 0.30mm |
|
Standard Width |
1220mm,1250mm |
|
Aluminum alloy |
1100 / 3003 |
|
Special Width |
1000mm,1500mm, 1550mm, 1575mm, 2000m |
|
Standard Length |
2440mm, 3200mm, 6000mm |
|
Special Length |
Less than 7000 mm |
|
Core LDPE
(Low density Polyethylene) |
Nonbreakable, Recycling, Extremely flexible, Good impact resistance, Chemical-and corrosion-resistant, No moisture absorption. |
|
Surface Coating |
One side Polyester painting,
Both sides Polyester painting |
|
Color |
Special PE paint for digital printing, high glossy, normal PE color etc |
Signage Grade Panel Weather resistant Parameter
|
Time |
Color Variation |
Chalking |
|
|
ECCA/T3 ASTMD 2244-89 |
ASTMD-659-86 |
|
|
¡÷E |
Index: 1-10 |
|
5 year |
3 |
8 |
|
7 year |
3 |
7 |
|
10 year |
4 |
7 |
¡÷E 3 = Very good, Index 10 =No chalking, ¡÷E 4 = Good, Index 1 =Strong Chalking, ¡÷E 5 = Satisfactory
Signage Grade Panel Technical Data
|
Panel thickness |
|
2 mm |
3mm |
4mm |
6mm |
|
Thickness of alu layer |
mm |
0.30 |
|
Weight |
Kg/m2 |
2.9 |
3.8 |
4.75 |
6.60 |
|
Technical Properties |
|
Section Modulus W |
cm3/m |
0.51 |
0.81 |
1.11 |
1.71 |
|
Rigidity(Posson¡¯ratio) u=0.3 E.I |
(KNcm3/m) |
345 |
865 |
1620 |
3840 |
|
Alloy of Aluminum Layers |
|
Modulus of Elasticity E |
(N/mm2) |
|
|
Tensile strength of aluminum |
(N/mm2) |
Rm: 145-185 |
|
0.2% Proof Stress |
(N/mm2) |
Rp0.2: 110-175 |
|
Elongation |
% |
A50>3% |
|
Lenear thermal expansion |
2.0mm/m(100.C temperature difference) |
|
Thermal Properties |
|
Termal Resistance R |
M2K/m |
0.0047 |
0.0080 |
0.0113 |
0.0180 |
|
Heat Transition Coetticient U |
w/m2k |
5.72 |
5.61 |
5.50 |
5.30 |
|
Range of application |
Celsius degree |
-50 ~ +80 | |
