Spectra Aluminum composite panel
Inspirited by themes from nature such as iridescent colors. The surface coated with a special high gloss painting, bring us a smooth and colorful feeling.
Interaction between light and material, reflection, diffraction and absorption are the secrets of color effects in nature.

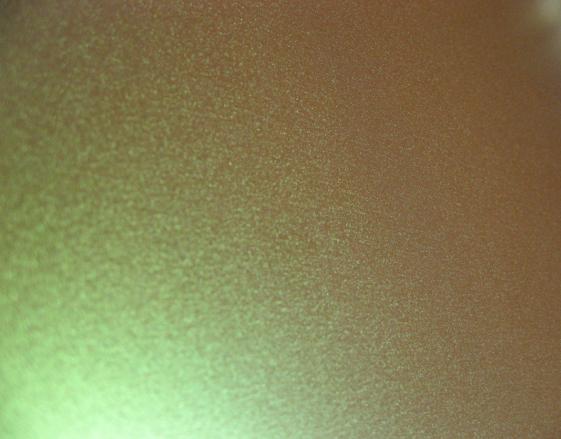

Chameleon Aluminium Composite Panel shows fantasy decorative effects.
|
Raw material |
Product specifications |
|
Base material of aluminum panel：
high strength aluminum alloy coils |
thickness：3-6mm，4mm is recommended |
|
PE core：non-toxic low density polythene |
width：1000-2000mm. 1220mm，1250mm，
1500mm,2000mm |
|
Surface coating：fluorocarbon coating，
triple coating system |
length：maximum is up to5800mm，2440mm，
3050mm，4050mm are recommended |
|
|
Thickness of aluminum sheet：0.2mm-0.5mm |
|
Coating |
Requirement |
Composite Panel |
Requirement |
|
coating rididity |
≥２Ｈ |
Length Deviation |
≤2mm |
|
Adhesive Force |
Cross-Cut Method Level 0 |
Width Deviation |
≤1mm |
|
Coating Flexibility |
≤2T |
Thickness Deviation |
≤0.1mm |
|
Durability |
≥5L/μm |
Diagonal Deviation |
≤3mm |
|
Boiling Water Resistance |
No change after 2 hours |
Edge Nonstraightness |
≤1mm/m |
|
Alkali Resistance |
No change |
Angularity |
≤5mm/m |
|
Acid Resistance |
No change |
Areal Density |
2.88kg/m2 |
|
Solvent Resistance |
No change |
Bending Strength |
≥60Mpa |
|
Washing Resistance |
No change after 10000 times |
Flexural Modulus |
≥15000Mpa |
|
|
Through Resistance |
≥5KN |
|
Shear Strength |
≥20Mpa |
|
180 Peeling Strength |
≥5N/mm |
|
Thermal Shock Resistance |
No Change |
Features:
Optical:
In accordance with optical elements, the spectra aluminum composite panels taks the advantages of the lights’reflection, diffraction, refraction and absorption.
These color effects have fascinate motivated, triggered emotions and had an effect on man’s feeling since time immemorial.
Traditional Techniques:
Spectra aluminum composite panel are composed of non-toxic and low density polyethylene core between two sheets of aluminum, with the technology of continuous composing.
The adhesive film keeps color well.
Coating performance:
Outdoor aluminum composite panels are coated with PVDF on the surface(Pearlescent mica PVDF>70%). The Color has two main systems, metal color and non-metal color.
As for indoor aluminum composite panels, the PE coating is up to usage requirements.
Color arrangements:
Spectra aluminum composite panels are based on the same principle as natural color effects.
Pigmentation effects and new dimensions to Spectra ACP with their luster, depth and color gradient.
Sensory Theme:
Depending on the type of pigment and viewpoint, different color enchanting effects with highlights and color iridescent gradients appear.
Design Exertion:
The spectra luminum composite panels have a series of glosses and sharps to meet the designer’s needs of originality of design, and achieve perfect results. |
