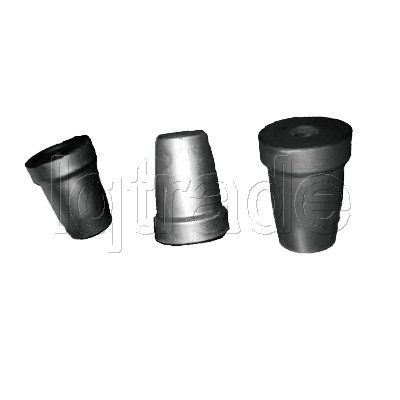

Properties of LQ Ladle nozzle (Alumina-Carbon material )

Our ladle nozzles are made from tabular corundum, Bauxite, flake graphite, antioxidant and phenolic resin.

Features: Excellent thermal shock resistance, stable performance, good corrosion and erosion resistance, strong cracking resistance etc.

Al-C Material
Al2O3	FC	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
75	4	14	2.85	75
85	3	14	2.90	80
90	3	14	2.95	80
